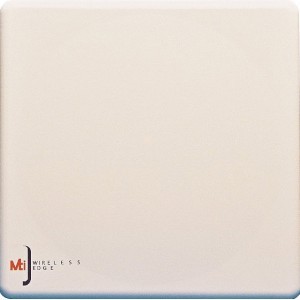

MTI MT-464042/ND, 4.9-5.9 GHz, 16.5dBi 65deg Double Dual Slant Sector Antenna

MTI MT-464042/ND, 4.9-5.9 GHz, 16.5dBi 65deg Double Dual Slant Sector Antenna

205,53 € με ΦΠΑ

Μη διαθέσιμο

Add to wishlist
Κωδικός προϊόντος: MT-464042/ND Κατηγορία:
Share
ELECTRICAL
REGULATORY COMPLIANCE RoHS, CE 0682
FREQUENCY RANGE 4.9-5.9 GHz
GAIN 16 dBi ± 0.5 dB
VSWR 1.5 : 1 (typ), 1.7:1 (max)
POLARIZATION Double Dual Linear ± 45°
-3DB ELEVATION BEAMWIDTH 7º (typ)
-3 DB AZIMUTH BEAMWIDTH 65° (typ)
ELEVATION SIDELOBE LEVEL -12 dB (typ.)
F/B RATIO -40 dB (typ)
CROSS POLARIZATION -15 dB (typ)
PORT TO PORT ISOLATION 20dB (typ)
POWER 6W (max)
INPUT IMPEDANCE 50 (ohm)
LIGHTNING PROTECTION DC Grounded

MECHANICAL
DIMENSIONS (LXWXD) 371 x 371 x 40mm (max)
CONNECTOR 4 x N-Type Female
WEIGHT 2 Kg (max)
MOUNTING KIT MT-120018
RADOME MATERIAL Plastic
BASE PLATE MATERIAL Aluminum with chemical conversion coating
ENVIRONMENTAL
TEST STANDARD DURATION TEMPERTURE NOTES
LOW TEMPERATURE IEC 68-2-1 72 h -55°C
HIGH TEMPERATURE IEC 68-2-2 72 h +71°C
TEMP. CYCLING IEC 68-2-14 1 h -45°C +70°C 3 Cycles
VIBRATION IEC 60721-3-4 30 min/axis Random4M3
SHOCK MECHANICAL IEC 60721-3-4 4M3
HUMIDITY ETSI EN300-2-4 T4.1E 144 h 95%
WATER TIGHTNESS IEC 529 IP67
SOLAR RADIATION  ASTM G53  1000h
FLAMMABILITY  UL 94  Class HB
SALT SPRAY IEC 68-2-11 Ka 500h
ICE AND SNOW 25mm Radial
WIND SPEED SURVIVAL OPERATION  220 Km/h

160 Km/h
WIND LOAD (SURVIVAL)

FRONT THRUST

SIDE THRUST

 39.6 kg

4.3 kg
