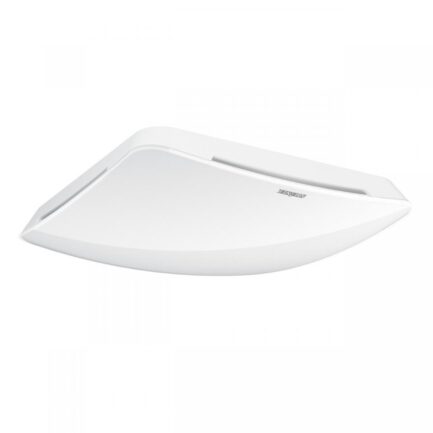

The first true presence detector.
Looking forward follows looking up. true presence® was developed to be the first true presence detector. It reliably indicates if a person is in the room or not. This means that reliable absence detection is possible for the first time. This information allows the reliable activation and deactivation of lighting without the need for stay ON times and without any waste of electricity. The detailed knowledge concerning presence and absence results in numerous other applications that can be very valuable for building management. This sets a new standard in advanced building automation.
Product parameters:
- Application, place: Indoors
- Installation: Concealed wiring
- Installation site: Ceiling
- Product category: Presence detector
- Movement: Ø 15 m (177 m²)
- Presence: Ø 15 m (177 m²)
- True Presence: Ø 9 m (64 m²)
- Version: KNX
- Color: White
- IP-rating: IP20
- Manufacturer: Steinel
Additional parameters:
- Detection angle: 360 °
- Technology, sensors: High frequency, Light sensor, Temperature, Air humidity
- HF-system: 7.2 GHz
- Detection: also through glass, wood and stud walls
- Mounting height: 2.00 – 12.00 m
- Interconnection via: KNX bus
- Type of interconnection: Master/master, Master/slave
- Settings via: ETS software, Bluetooth, Bus
- Material: UV-resistant plastic
- Time setting: 30 s – 1092 Min
- Twilight setting: 2 – 1000 lx
- Power supply, detail : KNX bus
- With bus coupling: Yes
- Digital high frequency sensor
- Interconnectable and adjustable via Bluetooth
- Article Number (EAN): 4007841056339
- Article number: 056339
